SETTINGS AND SPECIFICATIONS
Welcome to the Settings and Specifications section of my guide, where I’ll walk you through every step of tuning your metal detector, from the most beginner-friendly models to the advanced, high-end machines. Whether you’re just starting out or you’re a seasoned detectorist, I’ll break down key settings, explain what each adjustment does, and share links to tried-and-tested configurations. I’ll also dive into specs—frequencies, target separation, depth performance—and how to choose settings that fit your terrain and targets. Whether you’re hunting for Roman coins or Victorian relics, this section will help you unlock the full potential of your detector and boost your confidence in the field

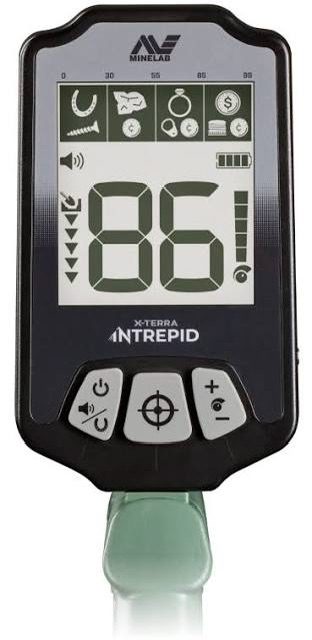

MINELAB X-TERRA INTREPID
Operating Frequency: Single frequency at 7.5 kH
Weight: Approximately 1.2 kg (including batteries)
Battery Life: Up to 20 hours on 4 AA batteries
Discrimination: Basic target discrimination between iron and non-ferrous
Target ID: Visual numeric scale from 1 to 99
Search Modes: All-Metal and Discriminate Mode
Coil Size: 8-inch concentric coil
Depth Range: Effective up to 6-8 inches depending on soil conditions
Build: Lightweight, weather-resistant shaft
Audio: Adjustable volume with tone discrimination
Screen: Basic LCD display with target readout
Warranty: Standard 2-year limited warranty
Accessories: Includes adjustable armrest and user manual

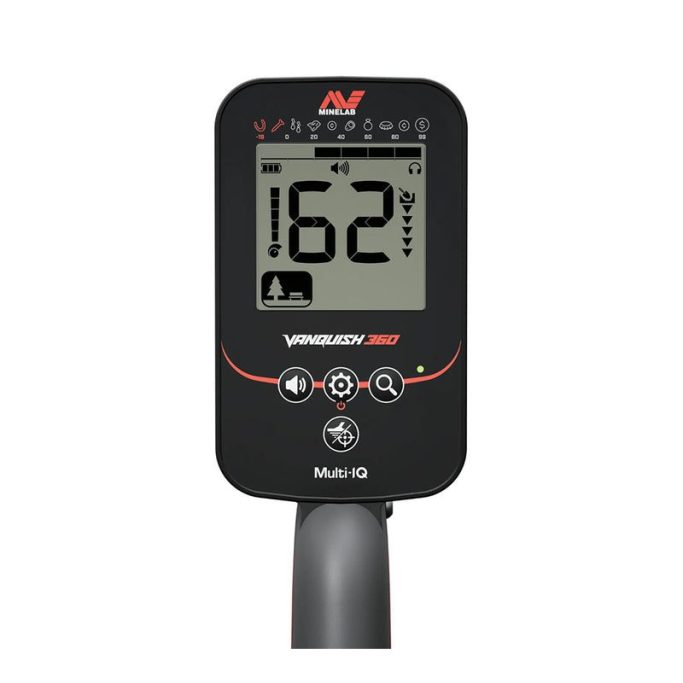

MINELAB VANQUISH 360
Operating Frequency: Multi-IQ® Simultaneous Multi-Frequency
Search Modes: Park, Beach, All Metal
Custom User Profile: Yes
Pinpoint Mode: Yes
Sensitivity Levels: 5
Noise Cancel: Automatic
Target ID Range: Ferrous -19 to 0, Non-Ferrous 1 to 99
Discrimination Segments: 6
Target Tones: 3 Tones
Iron Bias: Fixed (High)
Depth Indicator: 5 Levels
Audio Output: Built-in Speaker and 3.5mm Headphone Socket
Wireless Audio: No
Display: Monochrome LCD
Display Backlight: No
Keypad Backlight: No
Waterproof Rating: IP68 Waterproof to 5m (16ft)
Coil Supplied: V10X 10” x 7” Double-D Elliptical Coil
Weight: 1.16kg (2.6lb)
Length: 79cm Collapsed, 142cm Extended
Battery Type: Internal Lithium-Ion Rechargeable Battery
Battery Life: Up to 10 Hours
Charging Method: Magnetic USB Charging Cable
Operating Temperature: -10°C to +40°C
Storage Temperature: -20°C to +70°C
Warranty: 3 Years (Control Box and Coil)

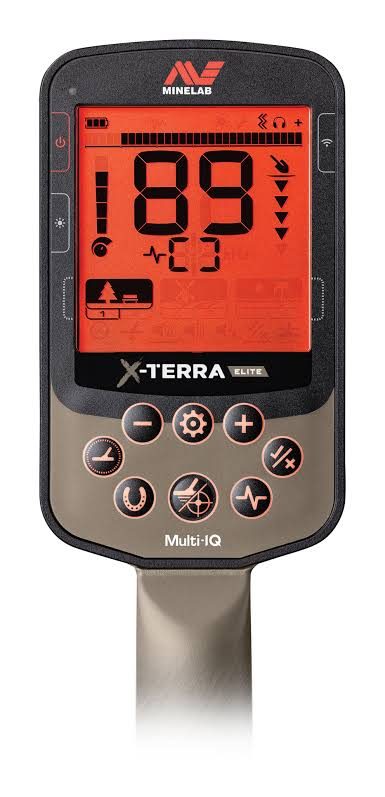

MINELAB X-TERRA ELITE
Operating Frequency: Multi-IQ® Simultaneous Multi-Frequency, 15 kHz Single Frequency Option
Search Modes: Park 1, Park 2, Field 1, Field 2, Beach 1, Beach 2, All Metal
Custom User Profile: Yes
Pinpoint Mode: Yes
Sensitivity Levels: 1–25
Noise Cancel: Automatic
Ground Balance: Automatic, Manual and Tracking
Target ID Range: Ferrous -19 to 0, Non-Ferrous 1 to 99
Target ID Resolution: 119 Segments
Discrimination Segments: 30
Target Tones: 1, 2, 5, All Tones, Depth Audio
Iron Bias: -1 to 2
Depth Indicator: 5 Levels
Audio Output: Built-in Speaker, 3.5mm Headphone Socket, Low Latency Wireless Audio
Wireless Audio: Yes
Display: Monochrome LCD
Display Backlight: Red (High, Low, Off)
Keypad Backlight: Red (High, Low, Off)
Flashlight: Yes
Vibration: Yes, including Ferrous Vibration Mode
Waterproof Rating: IP68 Waterproof to 5m (16ft)
Coil Supplied: V12X 12” x 9” Double-D Elliptical Coil
Weight: 1.3kg (2.9lb)
Length: 63cm Collapsed, 138cm Extended
Battery Type: Internal 3.7V 5100mAh Lithium-Ion Rechargeable Battery
Battery Life: All-Day Detecting (manufacturer specification)
Charging Method: Magnetic USB Charging Cable
Operating Temperature: -10°C to +40°C
Storage Temperature: -20°C to +70°C
Warranty: 3 Years (Control Box and Coil)
Key Technology: Multi-IQ® Simultaneous Multi-Frequency

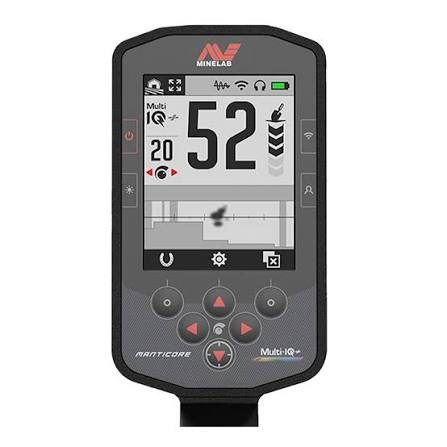

MINELAB MANTICORE
Operating Frequency: Multi-IQ+® Multi-Frequency, 5, 10, 15, 20 & 40 kHz
Search Modes: All Terrain, Beach and Goldfield
Sensitivity: 1–35
Recovery Speed: 0–8
Ground Balance: Auto, Manual and Tracking
Target ID: 0–99 with 2D Target Identification
Target Tones: 1, 2, 5 or All Tones
Pinpoint Mode: Yes
Wireless Audio: Yes
Display: Full Colour LCD with 2D Target Trace
Flashlight: Yes
Vibration: Yes
Waterproof Rating: IP68 Waterproof to 5m
Coil Supplied: M11 11” Double-D Coil
Weight: 1.3kg
Battery Type: Internal Rechargeable Lithium-Ion
Battery Life: Up to 10 Hours
Length: 63cm–144cm
Warranty: 3 Years
Key Technology: Multi-IQ+® with Enhanced Target Separation and 2D Ferrous Identification
